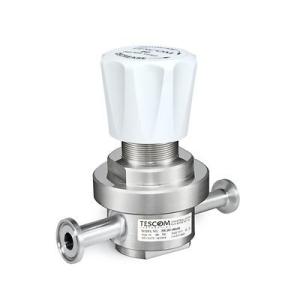

TESCOM PH2600 Series Single Stage Pressure Reducing Valve: High-Purity Precision For Critical Gas Applications

Name: TESCOM PH2600 Series Single Stage Pressure Reducing Valve HighPurity Precision For Critical Gas Applications
Brand: TESCOM
Price: 130 USD

Brand Name : TESCOM

Model Number : PH2600 Series

Place of Origin : china

MOQ : 1

Price : $130

Payment Terms : T/T, T/T

Supply Ability : >100

Contact Now

Product introduction:

The TESCOM PH2600 Series single stage pressure reducing valve is engineered for high-purity, corrosive, and pyrophoric gas applications requiring strict compliance with USP Class VI and BPE standards. Its compact design ensures space efficiency while delivering reliable performance in demanding environments.

Key Features:

Non-Diffusion Metal Diaphragm Sealing: Maintains gas purity and integrity with zero permeation, ideal for sensitive processes.
Precision Flow Control: Handles flows up to 283 SLPM / 10 SCFM with fine adjustment capabilities.
Corrosion Resistance: Constructed with 316L stainless steel and Teflon/PEEK seats for compatibility with aggressive media.
Compliance: Meets USP Class VI (biocompatibility) and BPE (bioprocessing) standards for pharmaceutical, semiconductor, and food & beverage industries.

Technical Specifications:

Parameter	Value
Inlet Pressure	Up to 10.3 bar (150 psig)
Outlet Pressure Range	0.69–10.3 bar (10–150 psig) via spring adjustment
Temperature Range	-40°C to 204°C (-40°F to 400°F) (varies by seat/material)
End Connections	- Sanitary or pipe interfaces
	- Sizes: 3/8" (tube only), 1/2"

Applications:

Semiconductor Manufacturing: Ultra-high-purity gas distribution.
Pharmaceutical/Biotech: Sanitary clean steam and inert gas supply.
Chemical Processing: Corrosive gas metering.
Laboratory Equipment: Low-flow specialty gas regulation.

Why Choose PH2600?

Reliability: Metal diaphragm eliminates leakage risks in high-pressure/high-purity systems.
Versatility: Multiple seat materials (Teflon, PEEK-OPTIMA) adapt to varying media and temperatures.
Safety: Designed for pyrophoric gases with static-dissipative features.

specifications

Parameter	Value
Inlet Pressure	Up to 10.3 bar (150 psig), suitable for high-pressure environments
Outlet Pressure Range	Adjustable by spring (handle) from 0.69 bar to 10.3 bar (0 - 10 psig to 150 psig)
Spring Deviation and Air Chamber	Provides additional pressure regulation from 0 to 6.9 bar (0 to 100 psi)
Body Material	316L stainless steel, with excellent corrosion resistance and strength
Seat	Options include Teflon, PEEK-OPTIMA, or PEEK-Classix for different temperature and media seal requirements
Valve Guides, Diaphragms, Seat Positioners and Some External Structures	Made of high-quality stainless steel or special materials for durability and performance stability
Operating Temperature	Ranges from -40°C to 204°C (-40°F to 400°F) depending on the valve seat material
End Hole Sizes and Types	Sanitary and pipe interface end hole types available, with 3/8" (tube only) and 1/2" size options
Circulation Capacity	Cv value ranges from 0.02 to 0.24, selectable according to specific flow needs
Load Type	Supports various load types such as spring, spring deviation, and gas chamber for more choices
Weight	Approximately 0.9 kg (2.0 lb)
